FamiStudio VRC7 Expansion Reference

All media within this post should be considered to be under CC0.

Table of content

Instuments names are shown as FamiStudioName / VRC7 Name

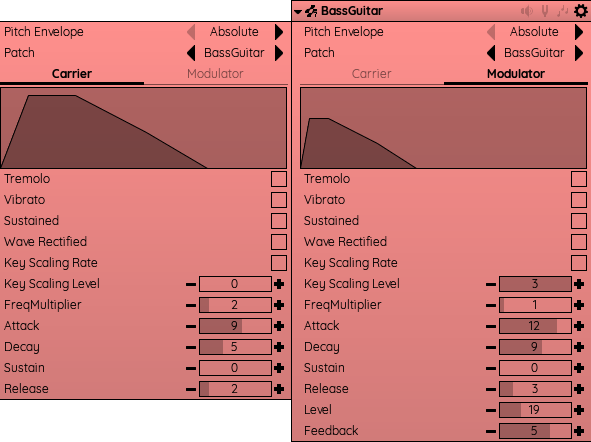

• BassGuitar / Fretless

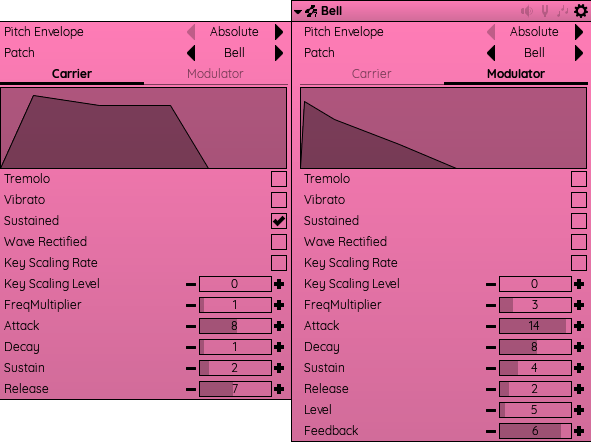

• Bell / Buzzy Bell
• Brass / Tutti

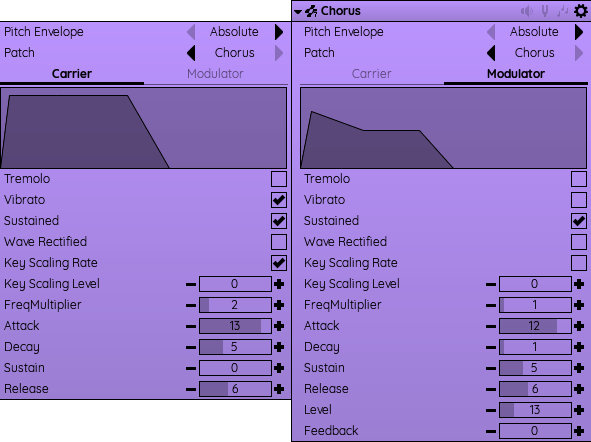

• Chorus / Sweep

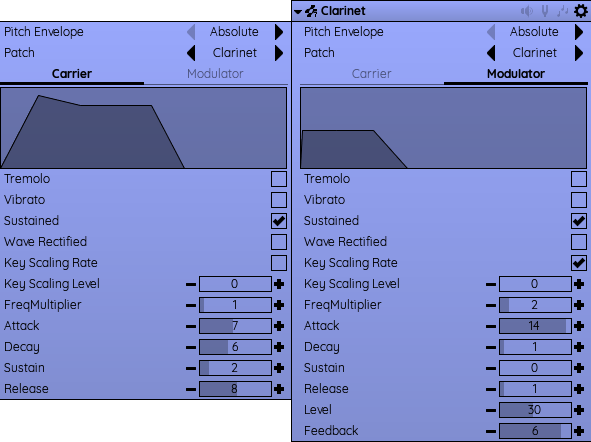

• Clarinet / Clarinet

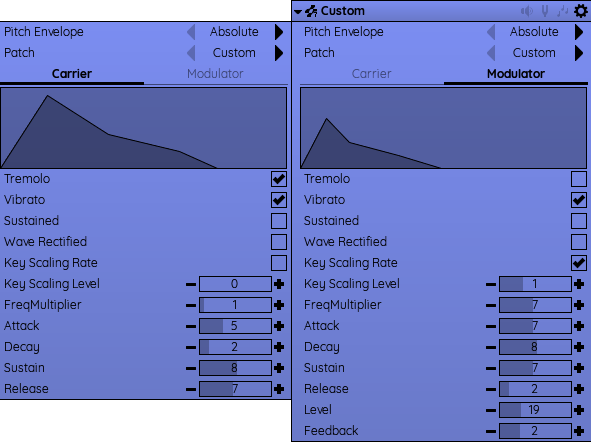

• Custom / Custom

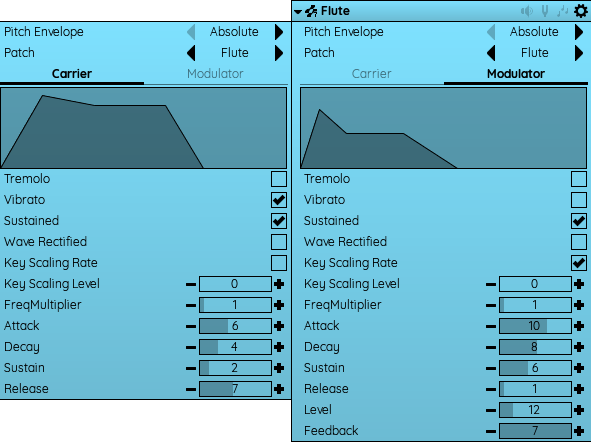

• Flute / Flute

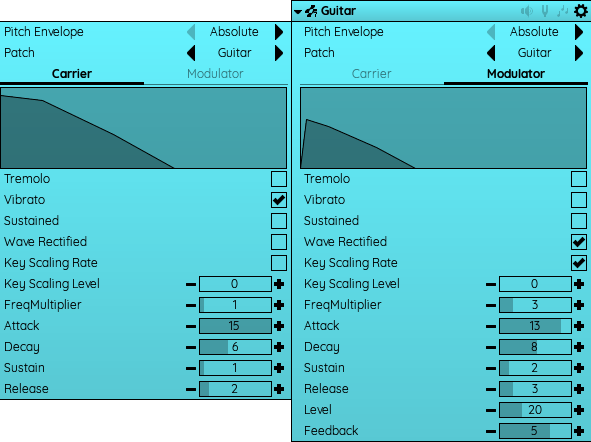

• Guitar / Guitar

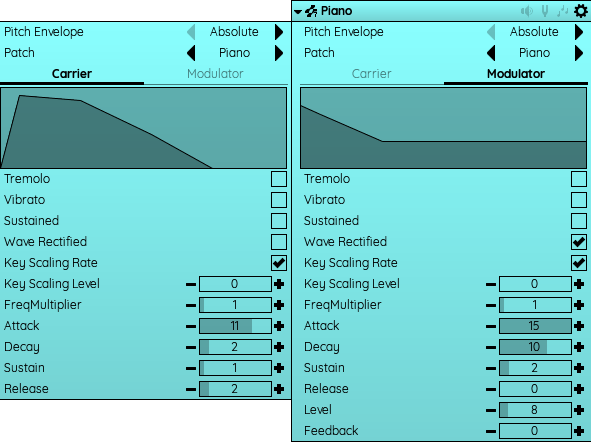

• Piano / Wurly

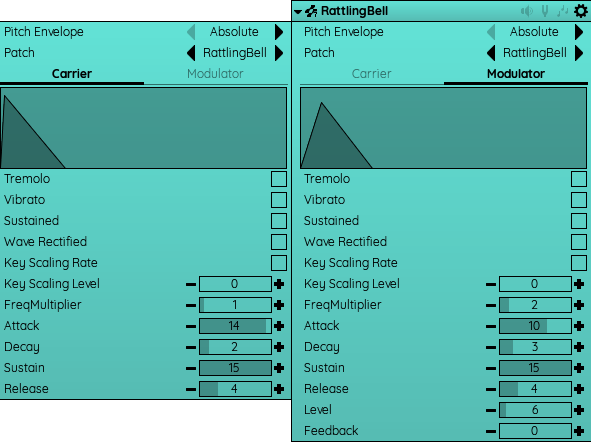

• RattlingBell / Synth

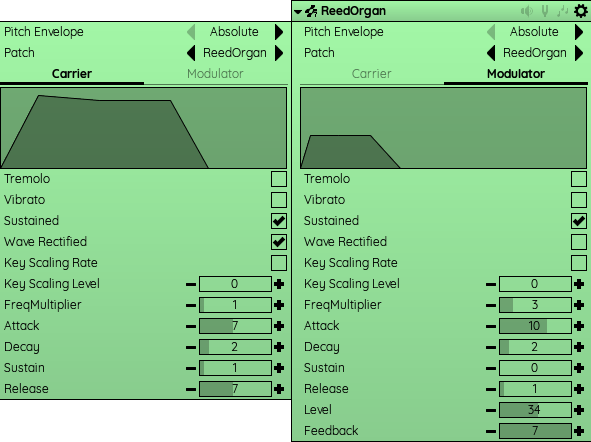

• ReedOrgan / Organ

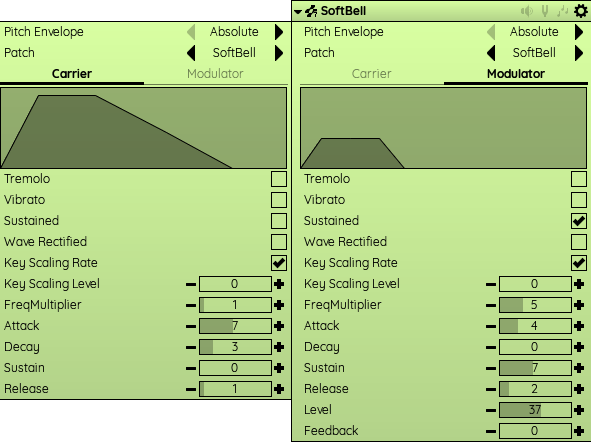

• SoftBell / Bells

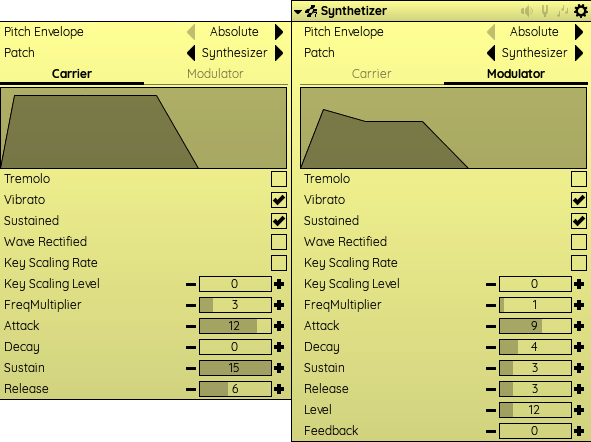

• Synthetizer / Synth Bass

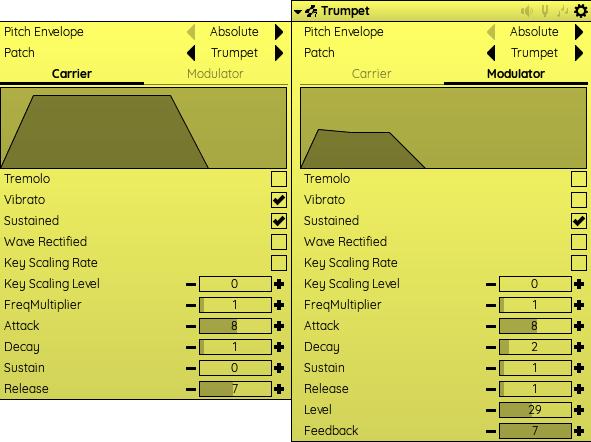

• Trumpet / Trumpet

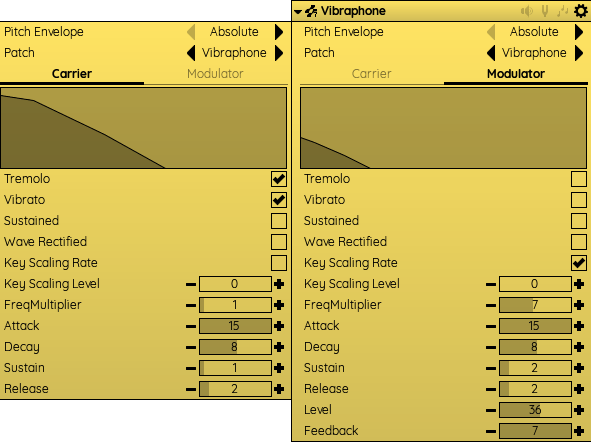

• Vibraphone / Vibraphone

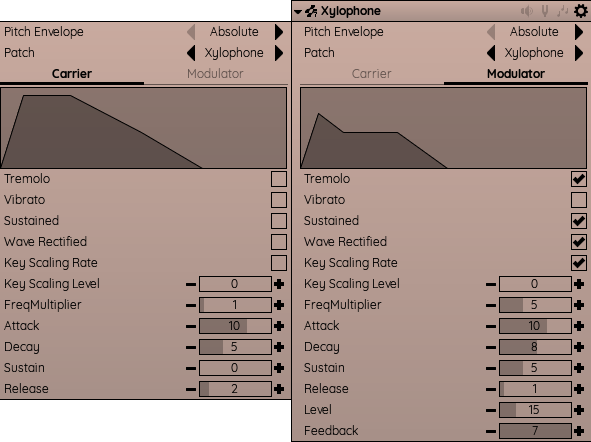

• Xylophone / Vibes

Video demo

Reference sheets

This is not an official patch, by which I mean that it's "empty" by default, so what is shown is the patch I quickly made for the demo.
